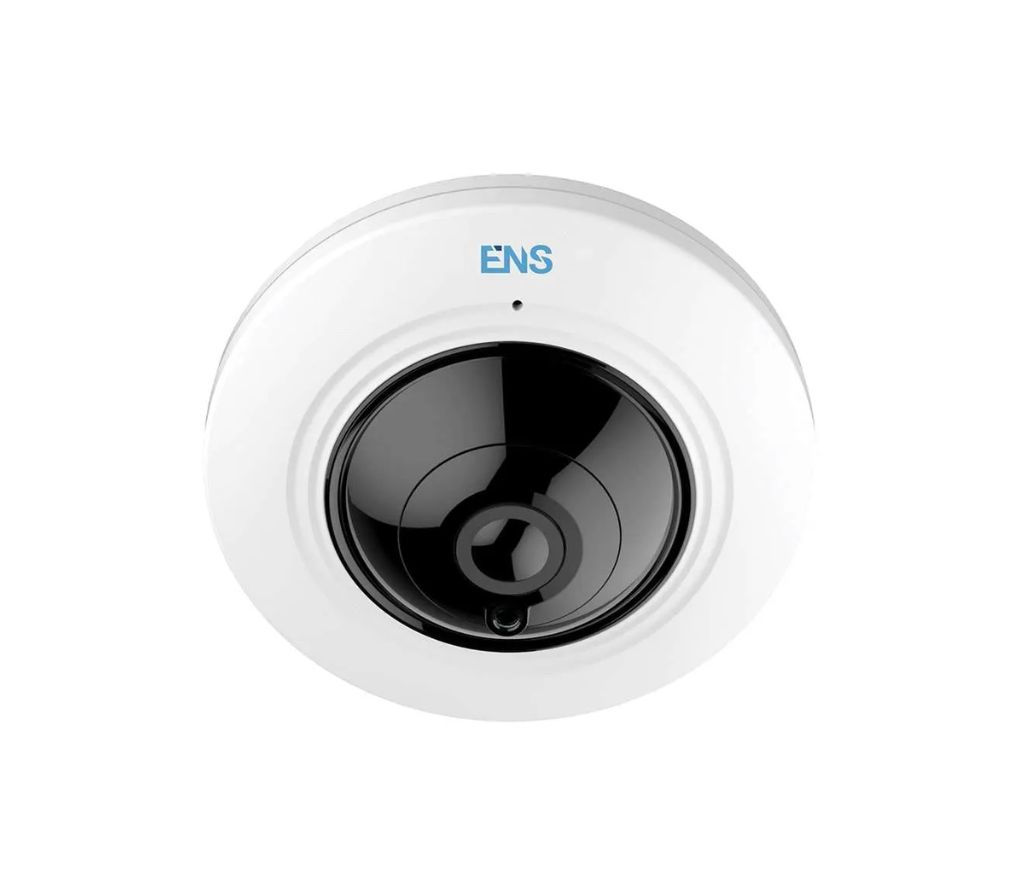

SCCSF5M/11 Tvt CCTV Camera || -H COAX 5MP Fisheye Other ?
SCCSF5M/11 Tvt CCTV Camera || -H COAX 5MP Fisheye Other ?

This listing includes:
  •  (1) ANALOG CAMERA: SCCSF5M/11

SCCSF5M/11  view data sheet
SCCSF5M/11 || -H, COAX, 5MP, Fisheye, Other Fixed


? Housing: Fisheye

? Resolution: 5MP

? Signal: TVI

? Lens Category: Other Fixed

? Night Vision: Infrared / IR

? WDR: N/A

? Water Resistance Rating : N/A

? NDAA Compliant: No

? Hardware Features: Audio Out, Built-in Mic

SCCSF5M/11 Tvt CCTV Camera || -H COAX 5MP Fisheye Other ?

SKU: 540590739073-QT1
$232.99Price
Quantity
Only 1 left in stock

  • view data sheet in PDF form



      Product Alias: Analog Camera Fisheye 5MP 2.8mm



    product info data sheet

    SCCSF5M/11 || -H, COAX, 5MP, Fisheye, Other Fixed

    ? Housing: Fisheye
    ? Resolution: 5MP
    ? Signal: TVI
    ? Lens Category: Other Fixed
    ? Night Vision: Infrared / IR
    ? WDR: N/A
    ? Water Resistance Rating : N/A
    ? NDAA Compliant: No
    ? Hardware Features: Audio Out, Built-in Mic



  • specifications

  • Downloads

  • Accessories

  • Configuration

  • Advanced Configuration

    • 5MP IR Fisheye Camera Features

    • 5 MP high-performance CMOS
    • Analog HD output, up to 5MP resolution
    • 0.01Lux@(F1.2, AGC ON),0 Lux with IR
    • IR cut filter with auto switch
    • OSD menu
    • Built-in microphone, 1-ch audio output
    • Multiple viewing modes: panorama, 4 PTZ, Fisheye & 3 PTZ, etc

    Camera

    • Image Sensor: 5Mega Progressive Scan CMOS
    • Max. Resolution: 2592(H)?1944(V)
    • Min. Illumination: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
    • Shutter Time: 1/12.5s to 1/20,000s
    • Day & Night: ICR
    • Angle Adjustment: Pan: 0?-30?; Tilt: 0?; Rotate: 0?

    Lens

    • Lens Type: 1.1mm
    • Focal Length & FOV: 186?
    • Lens Mount: M12


    • Image Settings: Brightness, Contrast, Saturation
    • Day/Night Mode: Color/BW/AUTO

    General

    • Dimension: ?120.4mm?54.5mm (?4.74??2.14?) Approx. 350g (0.77lb)
    • Operating Condition:?-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
    • Communication: Up the coax, Protocol: HIKVISION-C
    • Power Supply: DC12V?15%
    • Consumption: 5.5W MAX
    • IR Range: 33-66ft (10-20m)

    This Coaxial/ Analog Security Camera works with:

    • Digital Video Recorder (DVR)
    • Vision APP
    • How to use Vision
    Weight 0.928 lbs
    Dimensions 3.898 ? 4.921 ? 5.906 in

    Data Sheet

  • Analog Camera Fisheye 5MP 2.8mm
