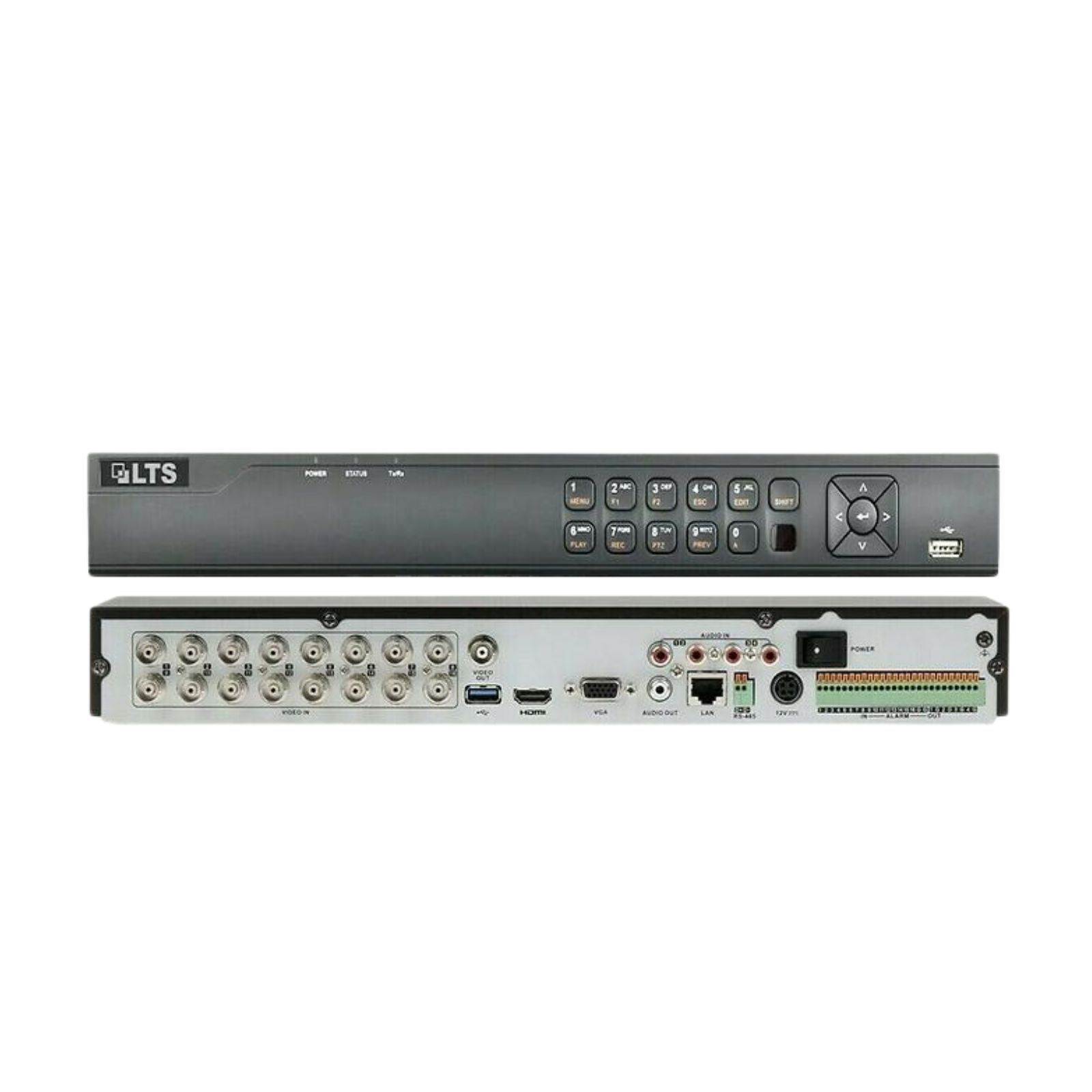

LTS 16CH DVR 1080p LTD8316K-ET 6TB H.265+ 16 Ch HD-TVI Hybrid 3 Year Warranty
LTS 16CH DVR 1080p LTD8316K-ET 6TB H.265+ 16 Ch HD-TVI Hybrid 3 Year Warranty

This listing includes:
  •  (1) HARD DRIVE OPTION: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
  • (1) DIGITAL VIDEO RECORDER: LTD8316K-ET

LTD8316K-ET  view data sheet
Platinum Professional Level 16 Channel HD-TVI DVR




16CH DVR H.265+, 5 in 1, 1-4 Channel support up to 3MP HD-TVI, Up to 2CH 4MP IP cameras, Up to 4K (3840X2160) HDMI Video Output








  • 16 Channel Video Recorder H.265/H.265+
    •

  • Support HD-TVI / AHD/ ANALOG / CVI / IP input (5-in-1)
    •

  • 1-4 Channel support up to 3MP HD-TVI input
    •

  • Up to 2-Ch 4MP IP Cameras input
    •

  • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
    •

  • Up to 4K (3840X2160) HDMI Video Output
    •

  • CVBS Output
    •

  • 2 SATA up to 16TB HDD
    •

  • 1 USB 2.0, 1 USB3.0
    •

  • 1080P@30fps with LTS efficient mode on

LTS 16CH DVR 1080p LTD8316K-ET 6TB H.265+ 16 Ch HD-TVI Hybrid 3 Year Warranty

SKU: 907317029073-QT1
$298.99Price
0/200
Quantity

  • view data sheet in PDF form



      Product Alias: DVR 16ch 4MP 2-SATA



    product info data sheet

    Platinum Professional Level 16 Channel HD-TVI DVR

    16CH DVR H.265+, 5 in 1, 1-4 Channel support up to 3MP HD-TVI, Up to 2CH 4MP IP cameras, Up to 4K (3840X2160) HDMI Video Output

    • 16 Channel Video Recorder H.265/H.265+
    • Support HD-TVI / AHD/ ANALOG / CVI / IP input (5-in-1)
    • 1-4 Channel support up to 3MP HD-TVI input
    • Up to 2-Ch 4MP IP Cameras input
    • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
    • Up to 4K (3840X2160) HDMI Video Output
    • CVBS Output
    • 2 SATA up to 16TB HDD
    • 1 USB 2.0, 1 USB3.0
    • 1080P@30fps with LTS efficient mode on


    SPECIFICATIONS
    Model Name LTD8316K-ET
    Video Compression H.265+
    Audio Compression G.711u
    IP Video Input 2-ch, Up to 4 MP resolution, supports H.265+/H.265/H.264 Zip+/H.264 IP cameras
    HD-TVI Input

    3 MP, 1080p30,1080p25, 720p60, 720p50,720p30,720p25
    Note: The 3 MP signal input is only available for channel 1/2/3/4
    Support HDCVI, AHD, 1080p25, 1080p30, 720p25, 720p30
    CVBS Input Support
    Simultaneous Playback 16CH
    Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?)
    HDMI VGA Output

    VGA: 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
    HDMI: 1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz,
    1280 ? 720/60Hz, 1024 ? 768/60Hz
    Encoding Resolution

    When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
    When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
    CVBS Output 1-ch, BNC (1.0 Vp-p, 75 k?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
    USB interface Front panel: 1 ?USB 2.0, Rear panel: 1 ?USB 3.0
    Two Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?) (using the1st audio input)
    Capacity 2 SATA/ Up to 8TB capacity for each disk
    Casing 1U
    Power supply 12 VDC
    Consumption ? 25W
    Operating Temperature -10 ?C ~ +55 ?C(14?F - 131?F)
    Product Dimension 380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
    Product Weight ?2 kg (4.4 lb)

    Data Sheet

  • DVR 16ch 4MP 2-SATA
